Steel Detailing

Draughting Solutions have over twenty years experience in the structural steel industry and primarily use Autodesk Advance Steel and Tekla software for 3d modelling.

We put extra effort into construction details that accurately reflect how the steelwork sits next to existing or proposed structure. This way third parties are better able to check and ‘approve’ drawings as swiftly as possible. They also show that you understand how the structure works and have interpreted their drawings correctly.

We always manually check the drawings to ensure dimensions and supplementary detail is a) the standard you expect and b) set up using a methodology which your workshop teams can follow swiftly and accurately.

Additionally the 3d modelling systems we run enable us to generate automatic lists and reports and also NC data enabling fast material

We mostly present details in B&W at A3 and A4 as we find most people have printers supporting these formats. On occasion we will supply larger GAs if the scale of the project demands it.

A brief list of projects we have worked on recently:

  • Stainless steel glazed balustrade
  • Mild steel helical staircase

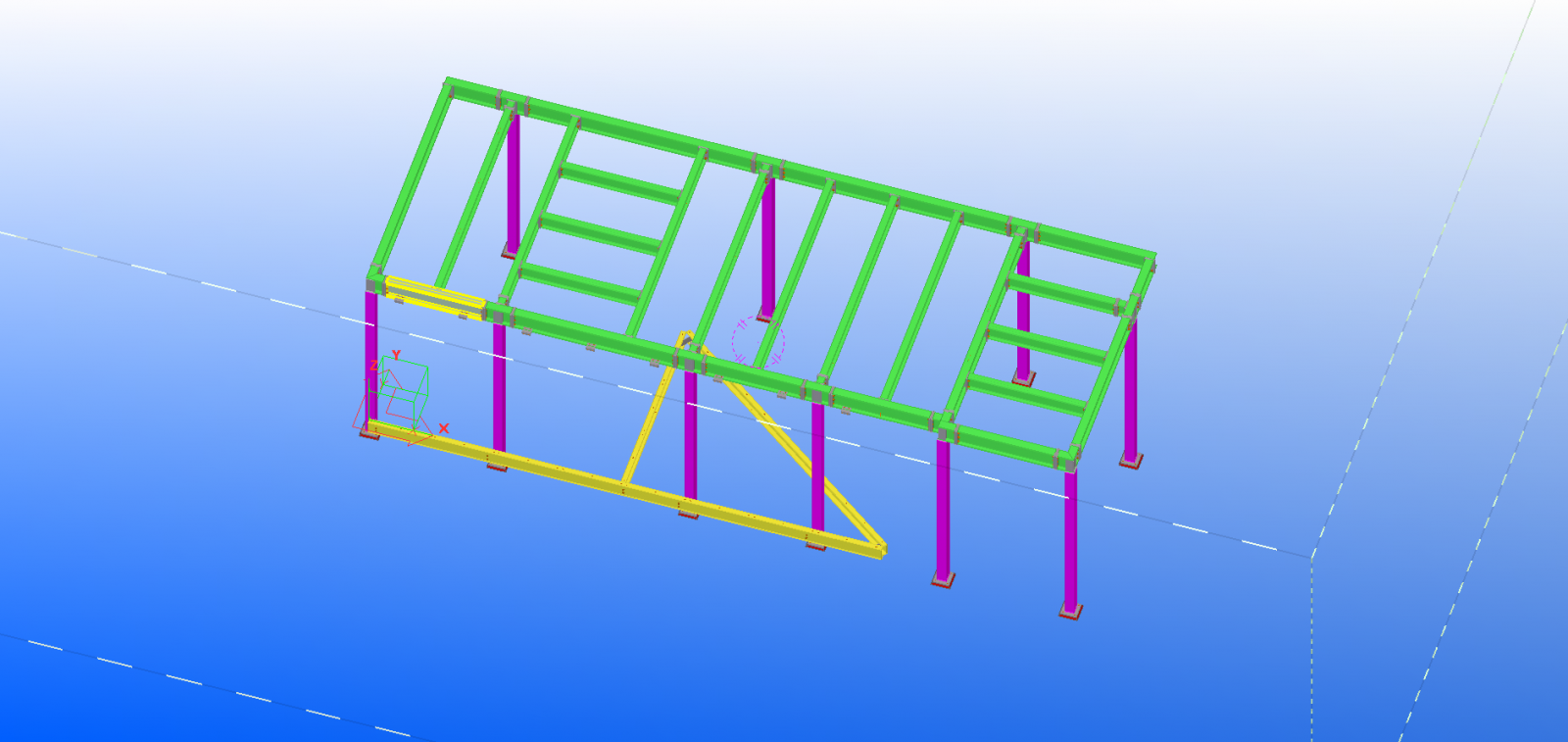

  • Thames walkway pavilion
  • Mezzanine Floors

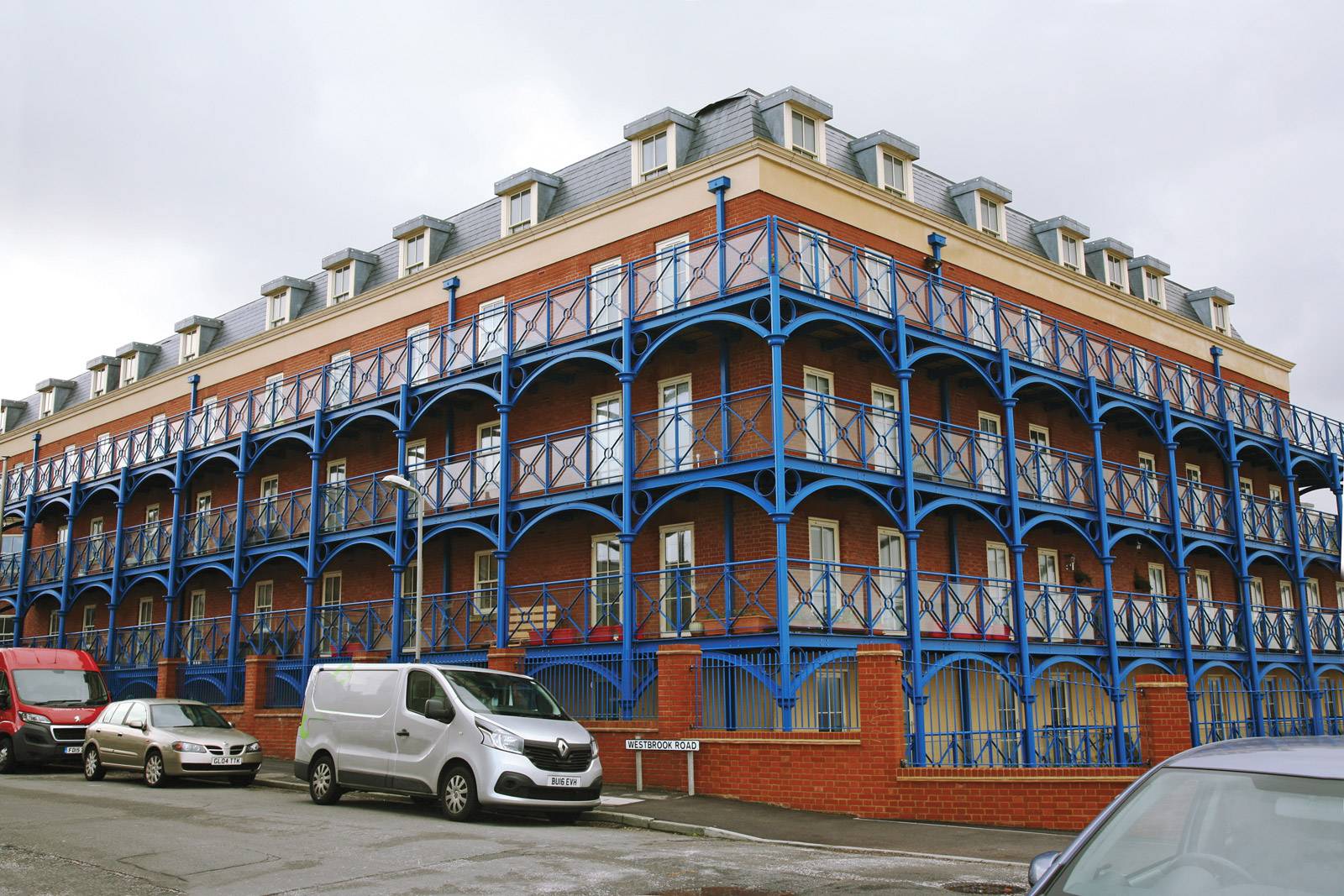

  • Balconies
  • Warehouse extension
  • Leisure Centre



For further information please contact us on 01227 762027 or email us at info@draughtingsolutions.co.uk
